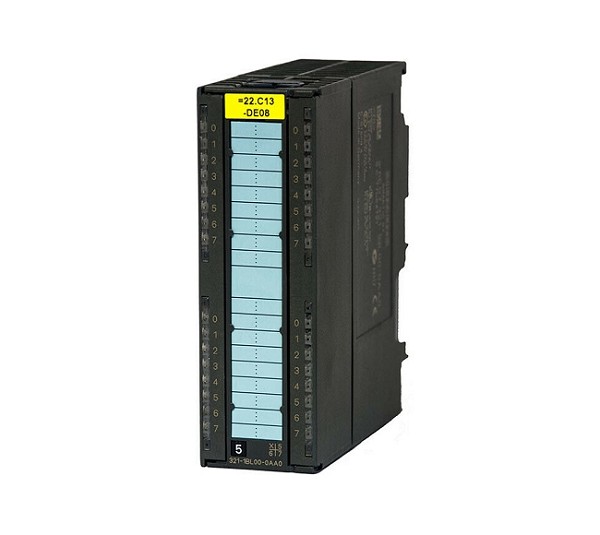

The SIMATIC S7-300 SM 321 is a high-density digital input module for industrial automation systems. This module provides thirty-two isolated 24V DC input channels in a single unit. It uses one 40-pole front connector for all input connections. Therefore, this digital input module ensures reliable sensor monitoring in space-efficient control systems.
Digital Input Module Main Features
- Thirty-Two Input Channels: High-density sensor connectivity
- 24V DC Operation: Standard industrial voltage level
- Electrical Isolation: Protection against noise and ground loops
- 40-Pole Connector: Single connector for all channels
- S7-300 Compatible: Designed for SIMATIC S7-300 PLC systems
- Space Efficient: Compact design for high channel count
Where This Module Works Best
This digital input module is perfect for applications needing many sensor inputs. For example, it’s ideal for large machines with multiple limit switches, push buttons, and sensors. Additionally, the isolation makes it suitable for noisy industrial environments. As a result, for complete PLC system solutions, this module provides high-density input capability.
When building automation systems, this input module maximizes control cabinet space. Meanwhile, it works perfectly with our Siemens S7-300 components for complete control packages. For technical details, check the Siemens product documentation.
Benefits of High-Density Modules
Using this SM 321 module optimizes control cabinet space significantly. Specifically, the high channel count reduces the number of modules needed in your system. Consequently, your control systems become more compact and cost-effective. The electrical isolation also protects the PLC from external electrical problems.
For engineers designing factory automation, this module offers efficient I/O density. Similarly, it complements other I/O modules in your control projects. For installation, follow the S7-300 system guidelines carefully.
Installation and Configuration
Proper setup ensures your input module works correctly and reliably. First, install the module in the S7-300 rack following the hardware configuration. Next, wire all thirty-two sensors to the 40-pole front connector. Finally, configure the module parameters in STEP 7 software for proper operation.
Enhance your sensor monitoring with the efficient SIMATIC S7-300 SM 321. This professional input module delivers excellent performance for high-density applications. So, trust this quality module for all your extensive digital input requirements.
