This product page details the Siemens SM 321 digital input module, a high-density component for the SIMATIC S7-300 PLC system. This 16-channel module accepts 24V DC sink/source input signals and features a single 20-pin front connector, providing an efficient and compact solution for reading digital sensor statuses in industrial automation environments.

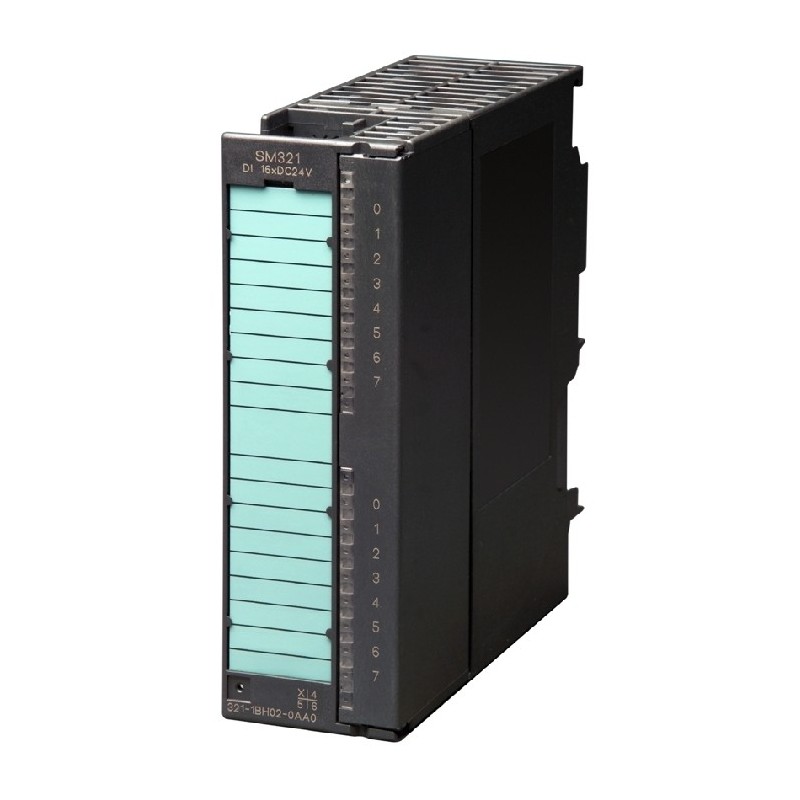

Overview of the SM 321 Digital Input Module
The SM 321 digital input module serves as the critical interface between your field devices and the S7-300 controller. Because it supports both sink and source wiring configurations, it offers exceptional flexibility for connecting various types of sensors and switches, simplifying installation and maintenance processes.
Key Features and Technical Specifications
This input module delivers reliable performance for industrial sensing applications. Therefore, here are its essential specifications:
- Channel Count: 16 independent digital inputs for comprehensive field device monitoring.
- Input Voltage: 24V DC standard for industrial control systems.
- Wiring Configuration: Supports both sink and source input types for maximum compatibility.
- Connection System: Single 20-pin front connector for efficient wiring and maintenance.
- Diagnostic Capabilities: Individual LED status indicators for each input channel.
- Isolation: Electrical isolation between field side and backplane bus for enhanced safety.
- Response Time: Fast signal processing for real-time control applications.
Typical Applications and Use Cases
The versatility of this SM 321 digital input module makes it suitable for numerous industrial automation scenarios. For example, it is commonly used for:
- Reading limit switch and proximity sensor statuses
- Monitoring push buttons and selector switches on control panels
- Detecting relay and contactor auxiliary contacts
- Safety circuit monitoring and general status indication
- Packaging, material handling, and assembly line applications
To build a complete S7-300 control system, you’ll need a central processing unit. Explore our selection of compatible S7-300 CPU modules to create your ideal automation solution.
Why Choose the SM 321 Input Module?
Selecting the SM 321 digital input module provides several significant advantages for industrial applications. Firstly, the sink/source capability allows connection of both PNP and NPN sensors without hardware modifications, reducing inventory requirements. Secondly, the high channel density in a single module slot optimizes control cabinet space utilization. Consequently, you achieve a flexible and cost-effective solution that simplifies system design while maintaining reliable signal acquisition.
For detailed wiring diagrams, technical specifications, and installation guidelines, refer to the official Siemens SM 321 manual.
Enhance Your Signal Acquisition Capabilities Today
In summary, the Siemens SM 321 digital input module represents an optimal combination of channel density, wiring flexibility, and reliable performance. Finally, by incorporating this module into your S7-300 system, you ensure accurate and efficient monitoring of your critical digital field devices, contributing to overall system reliability and operational efficiency.
