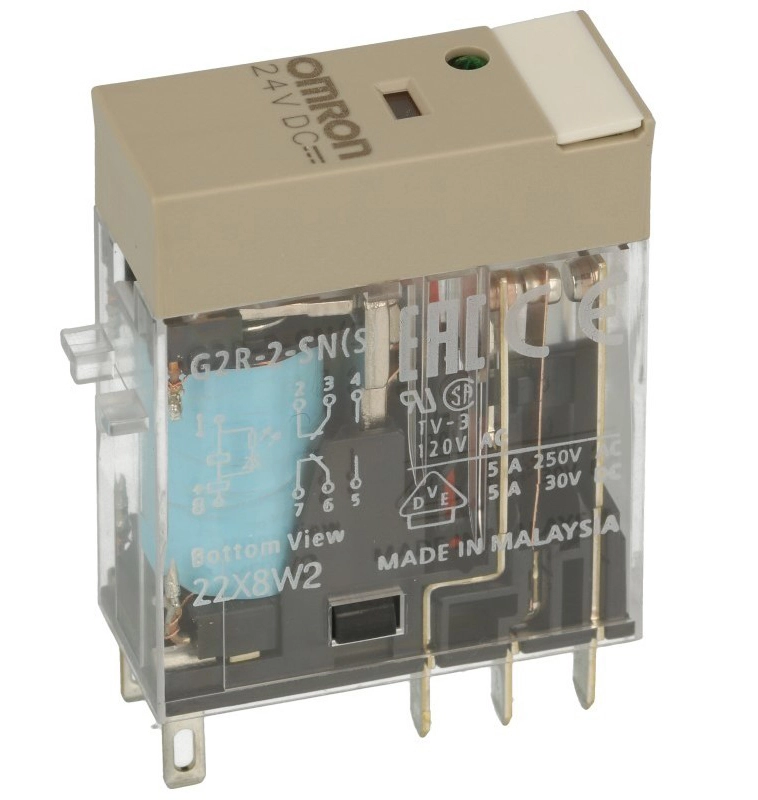

This product page details the versatile electromagnetic control relay, a fundamental component designed for various switching applications in electrical control systems. Featuring a DPDT (Double Pole Double Throw) contact configuration with a 24VDC operating coil and 5A contact rating, this relay provides flexible circuit control for automation, industrial systems, and safety applications.
Overview of the Control Relay
The electromagnetic control relay serves as a crucial interface between low-power control circuits and higher-power load circuits. Because it provides complete electrical isolation between the coil and contacts, it enables safe control of various electrical devices while protecting sensitive control components from load circuit disturbances.
Key Features and Technical Specifications
This relay is engineered for both reliability and versatility. Therefore, here are its essential characteristics:
- Contact Configuration: DPDT (2 Form C – 2NO + 2NC)
- Coil Voltage: 24VDC for safe control operation
- Contact Rating: 5A maximum switching current
- Operation: Electromagnetic mechanism
- Isolation: Complete isolation between coil and contacts
- Mounting: Various options including socket, PCB, or panel mount
- Construction: Durable materials for long service life
- Applications: Industrial control, automation, and safety circuits
Typical Applications and Use Cases
The versatile DPDT configuration of this control relay makes it suitable for numerous control applications. For example, it is commonly used for:
- Industrial machine control circuits
- Motor direction control and reversing
- Automation system interlocking
- Safety circuit monitoring and control
- Signal conditioning and conversion
- PLC output interface and expansion
- Lighting and power control systems
For complete relay solutions, explore our range of compatible relay sockets and mounting accessories designed for easy installation and maintenance.
Why Choose This DPDT Control Relay?
Selecting this specific control relay provides significant advantages for control system design. Firstly, the DPDT configuration offers two completely isolated circuits that can be switched simultaneously, providing maximum flexibility for complex control applications. Secondly, the 24VDC coil voltage ensures safe operation in control environments while being compatible with most PLCs, sensors, and control devices. Consequently, you achieve versatile circuit control with enhanced safety and compatibility for modern automation systems.
Installation and Wiring Guidelines
Proper installation of this control relay is straightforward yet crucial for reliable operation. Connect the 24VDC control voltage to the coil terminals, observing correct polarity. The DPDT contacts provide two independent circuits that can be wired as normally open, normally closed, or changeover configurations based on your application requirements. Furthermore, always ensure the load current does not exceed the 5A rating and use appropriate protection devices such as fuses or circuit breakers for the controlled circuits.
For detailed technical specifications and application examples, consult the comprehensive Omron relay technical documentation.
Enhance Your Control System Flexibility Today
In summary, this electromagnetic control relay with its DPDT configuration and 24VDC operation represents a versatile solution for various control applications. Finally, by incorporating this reliable relay into your control systems, you achieve circuit isolation, flexible switching, and enhanced control capabilities for your industrial and automation applications.
